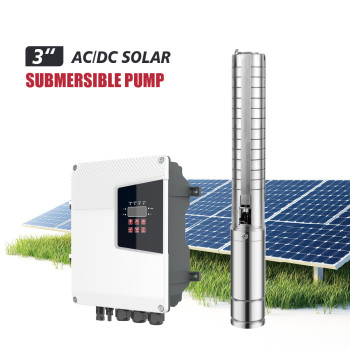

Z3SC-3 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT Controller

group name: Solar Pumping System

Min Order: 1 set

brand name: Vodloon Solar Energy Storage System Manufacturer

model: Z3SC-ADHY

Nearest port for product export: NINGBO, SHANGHAI, GUANGZHOU, SHENZHEN

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram

update time: Wed, 17 Dec 2025 18:36:21 GMT

contact supplier

Paramtents

Categories DC Solar Submersible Pump
Brand ZRI
Model Z3SC-ADHY
Pump Type Impeller Type Solar Submersible Pump
Outlet 1.25/2.0 inch
Pump Diameter 3 inch / 75 mm
Application Domestic water supply, small area irrigation
Certificate CE, ISO9001, GS, RoHS
Warranty 2 years
Package type Wooden Case

Packging & Delivery

Min Order1 set

Briefing

Z3SC-3 Solar-Powered Centrifugal Pump: OEM/ODM available. Durable stainless steel impeller with MPPT controller for optimal efficiency.

Detailed

Product Details

Packaging Information

Installation Guide

3 INCH AC/DC CENTRIFUGAL SOLAR PUMP

The 3-inch Solar Powered DC Submersible Bore Pump,Stainless Steel Impeller Solar Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this solar dc submersible water pump ensures maximum energy efficiency and stable operation. Its DC Impeller type design allows it to maintain consistent water flow even in deep wells or low-yield water sources, reducing maintenance needs.

This durable and versatile DC pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.

No.	Item	Rated Voltage	Optimum input voltage(DC)	Rated Power	Optimum input Power(W)	Max. Flow	Max. Head	Outlet	Cable	Controller	Solar panel Open circuit voltage (VOC)
A	Z3SC4.8-95-96-750D-A/DHY	80-285V	80-430V	750W	400-1200W	4.8m³/h	95m	1.25 "	2m	ADHY	＜450V
B	Z3SC4.8-112-150-1100D-A/DHY	80-285V	80-430V	1100W	600-1600W	4.8m³/h	110m	1.25 "	2m	ADHY	＜450V
C	Z3SC4.8-135-200-1500D-A/DHY	80-285V	80-430V	1500W	600-1800W	4.8m³/h	130m	1.25 "	2m	ADHY	＜450V

Application

● Application of deep well pump to irrigation	● Garden watering
● Village and town water supply	● Enviroment friendly
● Clean drinking water	● Pumping and drip irrigation

Pump Details

Trusted Manufacturer:

We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.

High Efficiency & Innovation:

Equipped with an MPPT controller and brushless DC motor, our DC centrifugal solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.

Versatile Applications:

Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.

Fully Customizable:

Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%

● Oil filled motors for reliability and to avoid oil contamination

● Alloy mechanical seal ,longer working life and high reliability

● NSK Angular Contact Bearing

Controller Details

- MPPT: Maximum Power Point Tracking

- Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor

Test Report

Z3SC4.8-95-96-750D-A/DHY

Z3SC4.8-112-150-1100D-A/DHY

Z3SC4.8-135-200-1500D-A/DHY

Packaging Information

Package Include: Additional materials need to be prepared:

● 1 x 3 inch Brushless solar centrifugal pump with one 2m cable
● 1 x AC/DC Hybrid Pump controler with MPPT function
● 1 x Plastic Water Float swith (sensor for tank)
● 1 x Pump outlet joint connector
● 1 x Splice kit for cable join
● 1 x Splice kit for waterproof

● Suitable solar panels. Refer to the suggestions provided in the instruction book.
● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.
● PV cable (for connecting solar panels to the controller).
● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.
● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.

Packaged Data

No.	Item	Water pump Packaging					Controller Packaging					Packaging materials
No.	Item	Length (CM）	Width(CM)	Height (CM)	Volume (m³)	Weight(KG)	Length (CM）	Width (CM)	Height (CM)	Volume (m³)	Weight (KG)	Packaging materials
A	Z3SC4.8-95-96-750D-A/DHY	69	16	15	0.017	11	52	30	15	0.023	6.2	Wooden Case
B	Z3SC4.8-112-150-1100D-A/DHY	74	16	15	0.018	11	52	30	15	0.023	6.2	Wooden Case
C	Z3SC4.8-135-200-1500D-A/DHY	82	16	15	0.020	11.5	52	30	15	0.023	6.2	Wooden Case

No.	Model	Controller Voc	Solar Panel Connection
A	Z3SC4.8-95-96-750D-A/DHY	SAD-3C96-220VOC
B	Z3SC4.8-112-150-1100D-A/DHY	SAD-3C15-430VOC
C	Z3SC4.8-135-200-1500D-A/DHY	SAD-3C20-430VOC
