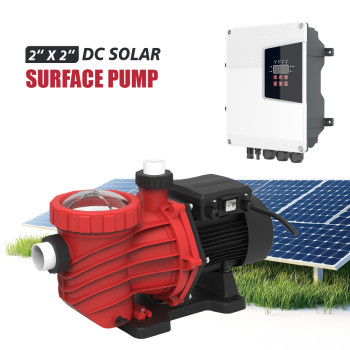

ZSSP-ADHY AC/DC Solar-Powered Swimming Pool Pump for Water Treatment with MPPT Controller

group name: Solar Pumping System

Min Order: 1 set

brand name: Vodloon Solar Energy Storage System Manufacturer

model: ZSSP-ADHY

Nearest port for product export: NINGBO, SHANGHAI, GUANGZHOU, SHENZHEN

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram

update time: Wed, 17 Dec 2025 18:43:53 GMT

contact supplier

Paramtents

Categories AC/DC Solar Swimming Pool Pump
Brand ZRI
Model ZSSP-ADHY
Pump Type Impeller Type Solar Swimming Pool Pump
Outlet 2 inch
Application Swimming pool, water park
Certificate CE, ISO9001, GS, RoHS
Warranty 2 years
Package type Wooden Case

Packging & Delivery

Min Order1 set

Briefing

ZSSP-ADHY AC/DC Solar Pool Pump offers efficient water treatment with MPPT control. OEM, ODM, wholesale options available.

Detailed

Product Details

Packaging Information

Installation Guide

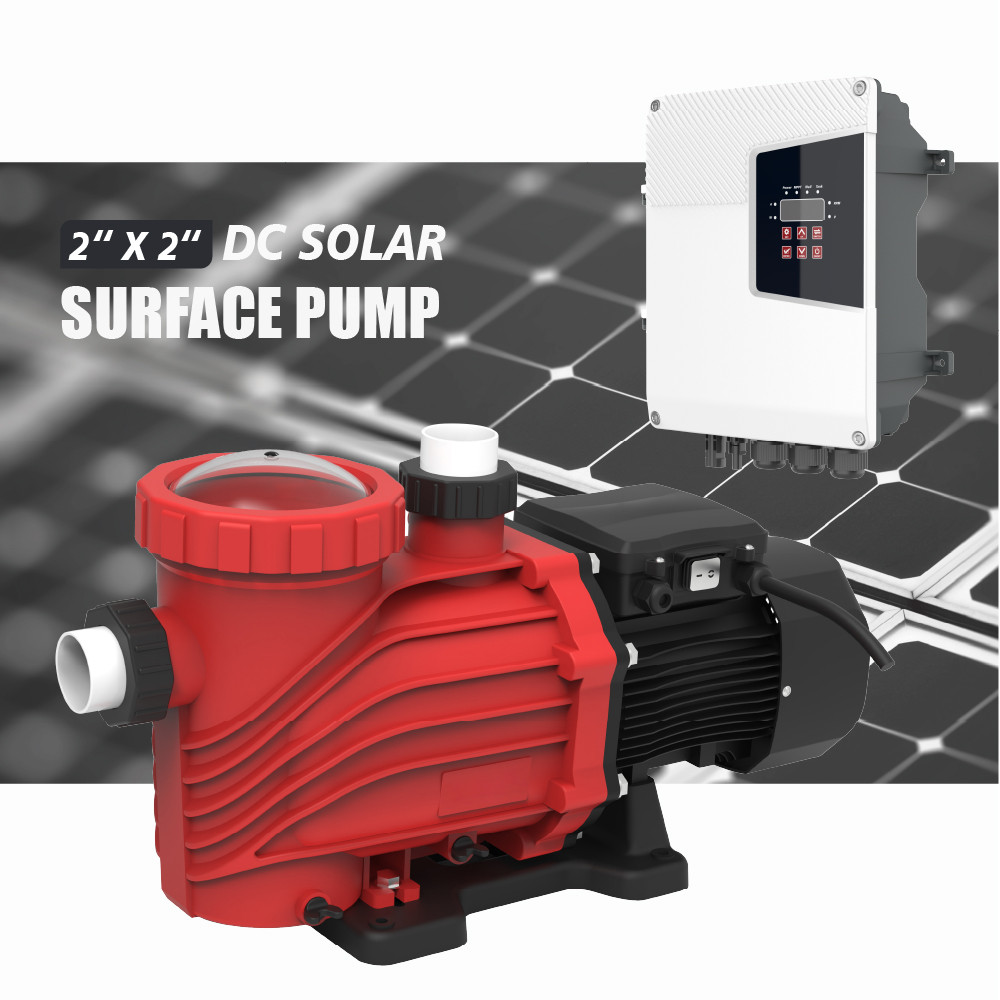

Solar Swimming Pool Pump

With the mass emission of greenhouse gas like carbon dioxide, global warming is a growing problem to face. Renewable energy is thus greatly promoted and applied in developed countries. Government subsidies renewable energy users or allows free tax policy so as to reduce consumption of those non-renewable energy like oil, coal. This significantly helps to save energy and protect environment.

ZRI Solar circulation system is featured with modular design, zero noise and pollution free. It is fully safe and reliable, very easy for maintenance. No battery is required.

ZRI Solar circulation system not only benefits the domestic and commercial users with purified water and advanced swimming pool circulation mode, but also reduces electricity cost with free energy.

No.	Item	Rated AC Voltage	Rated DC Voltage	Rated Power	Optimum input Power(W)	Max. Flow	Max. Head	Outlet	Cable	Controller	Solar panel Open circuit voltage (VOC)
A	ZSSP20-19-150-900-AD	80-285V	80-430V	900W	400-1600W	20m³/h	19m	2.0×2.0 "	1m	ADHY	＜450V
B	ZSSP27-19-180-1200-AD	80-285V	80-430V	1200W	600-1800W	27m³/h	19m	3.0×3.0 "	1m	ADHY	＜450V

Application

● Application of lake or river to irrigation	● Garden watering
● Village and town water supply	● Enviroment friendly
● Clean drinking water	● Pumping and drip irrigation

Pump Details

Trusted Manufacturer

We specialize in Solar Pumps with years of OEM/ODM experience, boasting reliable quality and a robust global supply chain to support your business needs.

High Efficiency & Innovation

Equipped with an MPPT controller and a brushless DC motor, our DCSolar Swimming Pool Pump maximizes energy efficiency and delivers stable water flow – even with shallow water sources or variable supply conditions.

Versatile Applications

Ideal for agricultural irrigation, livestock watering, and rural water supply projects, it provides a sustainable solution for off-grid or remote water needs.

Fully Customizable

We offer flexible options for pump size, flow rate, voltage, and branding – perfect for private labeling or tailored solutions to match your specific project requirements.

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%

● Oil filled motors for reliability and to avoid oil contamination

● Alloy mechanical seal ,longer working life and high reliability

● NSK Angular Contact Bearing

Controller Details

- MPPT: Maximum Power Point Tracking

- Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor

Test Report

ZSSP20-19-150-900-AD

ZSSP27-19-180-1200-AD

Packaging Information

Package Include: Additional materials need to be prepared:

● 1 x AC/DC solar surface pump with one 1m cable

● 1 x AC/DC Pump controler with MPPT function

● 1 x Plastic float swith (sensor for tank)

● 1 x Pump outlet joint connector

● 1 x Splice kit for cable join

● 1 x Splice kit for waterproof

● Suitable solar panels. Refer to the suggestions provided in the instruction book.

● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.

● PV cable (for connecting solar panels to the controller).

● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.

● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.

Packaged Data

No.	Item	Water pump Packaging					Controller Packaging					Packaging materials
No.	Item	Length (CM）	Width(CM)	Height (CM)	Volume (m³)	Weight(kg)	Length (CM）	Width (CM)	Height (CM)	Volume (m³)	Weight (kg)	Packaging materials
A	ZSSP20-19-150-900-AD	50	28	40	0.056	18	52	30	15	0.0234	6.2	Wooden Case
B	ZSSP27-19-180-1200-AD	50	28	40	0.056	20	52	30	15	0.0234	6.2	Wooden Case

No.	Model	Controller Voc	Solar Panel Connection
A	SSSP20-19-150-900	SSL-5H15-430VOC
A	SSSP27-19-180-1200	SSL-5H20-430VOC
