SDPO Off Grid Hybrid Inverter(EU Model) Solar Inverter for Energy Storage System

group name: Solar Inverter

Min Order: 1 set

brand name: Vodloon Solar Energy Storage System Manufacturer

model: SDPO

Nearest port for product export: NINGBO, SHANGHAI, GUANGZHOU, SHENZHEN

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram

update time: Wed, 17 Dec 2025 16:56:21 GMT

contact supplier

Paramtents

Standard EU Model
Waveform Pure sine wave
Rated input voltage 220/230/240VAC
Output voltage 220/230/240VAC±5%
Battery type Lithium ion batteries/lead-acid batteries/user-def
PV charging method MPPT
Communication interface USB/RS485 (optional WiFi)/dry connector
Warranty 3 Years
Certificate CE/ROHS/FCC

Packging & Delivery

Min Order1 set

Briefing

High Efficiency MPPT tracking, Three output modes, 3 Years Warranty, With USB/RS485 (optional WiFi)/dry connector Communication

Detailed

Product Details

Packaging Information

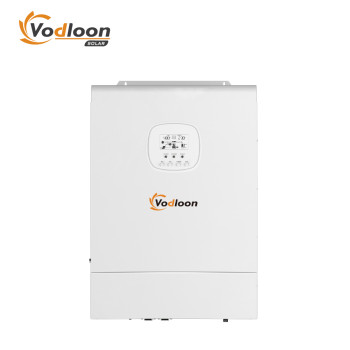

SDPO Off Grid Hybrid Inverter(EU Model)

SDPO Off Grid Hybrid Inverter

(EU Model)

MPPT

Solar Hybrid Inverter

Pure Sinewave Output

Lithium Communication

Photovoltaic+ Mains Charging

Eight Major Protection Functions

Product Parameters

Model	SPW-B-48100	SPW-B-48200	SPW-B-48300	SPW-B-512100	SPW-B-51.2200	SPW-B-512300
Standard voltage	48V	48V	48V	51.2V	51.2V	51.2V
Standard capacity	100Ah	200Ah	300Ah	100Ah	200Ah	300Ah
Rated capacity	4.8KWh	9.6kWh	14.4kWh	5.12kWh	10.24kWh	15.36kWh
Working woltage	40.5-54V	40.5-54V	40.5-54V	432-57.6V	432-57.6V	432-57.6V
Standard charging current	50A	100A	150A	50A	100A	150A
Standard discharging current	100A	100A	200A	100A	100A	200A
Suggested DOD	80%	80%	80%	80%	80%	80%
Cycle Life	>6000 cycles	>6000 cycles	>6000 cycles	>6000 cycles	>6000 cycles	>6000 cycles
IP Rating	IP21(IP65optional)	IP21(IP65optional)	IP21(IP65optional)	IP21(IP65optional)	IP21(IP65optional)	IP21(IP65optional)
Discharge operating temperature	-20℃-60℃	-20℃-60℃	-20℃-60℃	-20℃-60℃	-20℃-60℃	-20℃-60℃
Charging operating temperature	0℃-45℃	0℃-45℃	0℃-45℃	0℃-45℃	0℃-45℃	0℃-45℃
Maximum parallel	15PCS	15PCS	15PCS	15PCS	15PCS	15PCS
Communication	RS232/CAN/RS485 (WIFI/BT optional)	RS232/CAN/RS485 (WIFI/BT optional)	RS232/CAN/RS485 (WIFI/BT optional)	RS232/CAN/RS485 (WIFI/BT optional)	RS232/CAN/RS485 (WIFI/BT optional)	RS232/CAN/RS485 (WIFI/BT optional)
Display	LCD touch screen	LCD touch screen	LCD touch screen	LCD touch screen	LCD touch screen	LCD touch screen
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years
Certificate	UN38.3/MSDS/CE/ROHS/FCC	UN38.3/MSDS/CE/ROHS/FCC	UN38.3/MSDS/CE/ROHS/FCC	UN38.3/MSDS/CE/ROHS/FCC	UN38.3/MSDS/CE/ROHS/FCC	UN38.3/MSDS/CE/ROHS/FCC
NW. (kg)	47.2	87	115	48	91	120
GW(kg)	51.4	105	133	55	109	138
Product size(mm)	545460200	790530200	790530240	545460200	790530200	790530240
Package size(mm)	625540300	870610410	850590300	625540300	870610410	850590300

Product Introduction

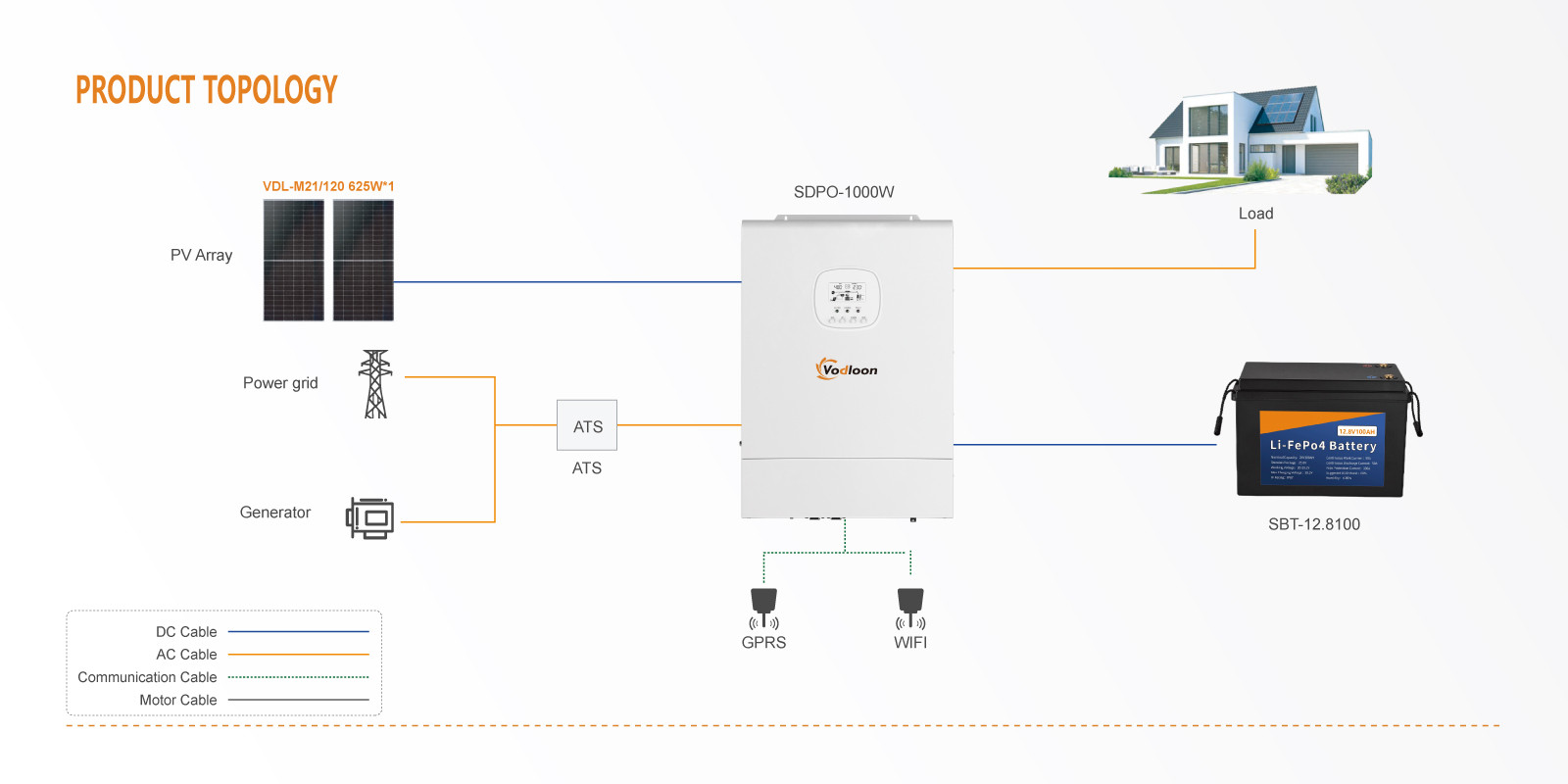

The SDPO off grid hybrid inverter combines photovoltaic and mains charging and discharging, UPS bypass, and battery inversion functions. It can intelligently adjust the work priority, communicate with home lithium batteries, and can also increase output power through multiple sets of parallel machines. It can be applied in different application scenarios such as homes, RV,agriculture, and industry.

Product Features

1. Advanced SPWM technology, pure sine wave output

2. Automatic activation of lithium batteries

3. Four charging modes including photovoltaic, mains, photovoltaic priority, and hybrid charging

4. Advanced MPPT technology with an efficiency of up to 99.9%

5. Three output modes: photovoltaic,inverter, and mains bypass

Application Area

※ Energy storage system, control system, alarm system, power system, database

※ Emergency lighting system, emergency power supply, UPS

※ Telecommunications, communication, and fire protection

Download

SDPO Off Grid Hybrid Inverter(EU Model)
