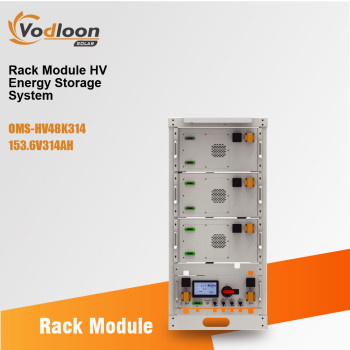

OMS-HV48K314 Rack storage lithium battery 153.6V314AH

group name: Lithium Battery

Min Order: 1 set

brand name: Vodloon Solar Energy Storage System Manufacturer

model: OMS-HV48K314

Nearest port for product export: NINGBO, SHANGHAI, GUANGZHOU, SHENZHEN

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram

update time: Sat, 27 Jun 2026 23:32:46 GMT

contact supplier

Paramtents

Standard 153.6V314AH
Nominal Voltage 153.6V
Nominal Capacity(KWH) 48.2
Working Temperature 0℃~50℃ Charge -10℃~50℃ Disharge
Transport or Storage Temperature Range -20℃~60℃
Certification CE/IEC/UL/UN38.3/MSDS

Packging & Delivery

Min Order1 set

Briefing

OMS-HV48K314 Rack Lithium Battery (153.6V 314AH) for OEM/ODM. Reliable high-voltage energy storage, supplied by experienced manufacturer for grid-scale projects.

Detailed

Product Details

Packaging Information

OMS-HV48K314 ENERGY STORAGE BESS 153.6V314AH

OMS-HV48K314

ENERGY STORAGE BESS

Number of battery modules:153.6V314AH

Standard voltage: 153.6V

Cycle Life: >6000 cycles

Battery Parameters

MODEL	OMS-HV48K314
Model	153.6V314AH
Nominal Voltage	153.6V
Nominal Capacity	314
Dimension moudle(mm)	483245792*3
Dimension RACK(mm)	5507801190
Weight(kg)	408
SPECIFICATIONS	PARAMETER
Nominal Capacity(KWH)	48.2
Discharge Cut-Off Voltage(V)	132
Charge Cut-Off Voltage(V)	170.4
Recoend Charge/Discharge Current(A)	100
Max.Charge/Discharge Current(A)	160
Counication	RS485/RS232/CAN
Working Temperature	0℃~50℃ Charge -10℃~50℃ Disharge
Transport or Storage Temperature Range	-20℃~60℃
Certification	CE/IEC/UL/UN38.3/MSDS
Design Life	15years+
Cycle Life	(0.5C/0.5C-80%DOD)>6000 times
Series Function	Support 16 units in Series
Certification	UN38.3/MSDS/ROHS

Application Area

※ Energy storage system, control system, alarm system, power system, database

※ Emergency lighting system, emergency power supply, UPS

※ Telecommunications, communication, and fire protection

Download

OMS-HV48K314 ENERGY STORAGE BESS 153.6V314AH
