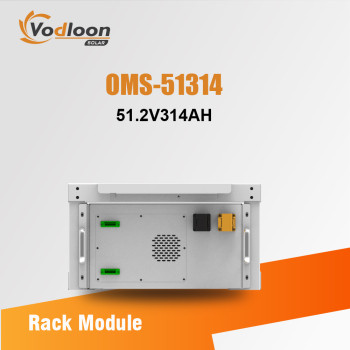

OMS-HV51314 Rack storage lithium battery 51.2V314Ah
- group name
- Lithium Battery
- Min Order
- 1 set
- brand name
- Vodloon Solar Energy Storage System Manufacturer
- model
- OMS-HV51314
- Nearest port for product export
- NINGBO, SHANGHAI, GUANGZHOU, SHENZHEN
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram
- update time
- Sat, 27 Jun 2026 23:33:02 GMT
Paramtents
Standard 51.2V314AH
Nominal Voltage 51.2V
Nominal Capacity(KWH) 16.1
Working Temperature 0℃~50℃ Charge -10℃~50℃ Disharge
Transport or Storage Temperature Range -20℃~60℃
Certification CE/IEC/UL/UN38.3/MSDS
Packging & Delivery
-
Min Order1 set
Briefing
OMS-HV51314 Rack Storage Lithium Battery 51.2V314Ah - OEM/ODM wholesale solutions for reliable, high-performance energy storage.
Detailed
OMS-HV5120 Rack storage lithium battery 51.2V100Ah
OMS-HV51314
Rack storage lithium battery
Battery modules: 51.2V 314Ah
Standard voltage: 51.2V
Cycle Life: >6000 cycles
Battery Parameters
MODEL | OMS-5120 |
Model | 51.2V100AH |
Nominal Voltage | 51.2V |
Dimension moudle(mm) | 440*442*133 |
Dimension RACK(mm) | / |
Weight(kg) | 44 |
SPECIFICATIONS | PARAMETER |
Nominal Capacity(KWH) | 5.12 |
Discharge Cut-Off Voltage(V) | 44 |
Charge Cut-Off Voltage(V) | 56.8 |
Recoend Charge/Discharge Current(A) | 60 |
Max.Charge/Discharge Current(A) | 100 |
Counication | RS485/RS232/CAN |
Working Temperature | 0℃~50℃ Charge -10℃~50℃ Disharge |
Transport or Storage Temperature Range | -20℃~60℃ |
Certification | CE/IEC/UL/UN38.3/MSDS |
Design Life | 15years+ |
Cycle Life | (0.5C/0.5C-80%DOD)>6000 times |
Series Function | Support 16 units in Series |
Certification | UN38.3/MSDS/ROHS |
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
